Overview

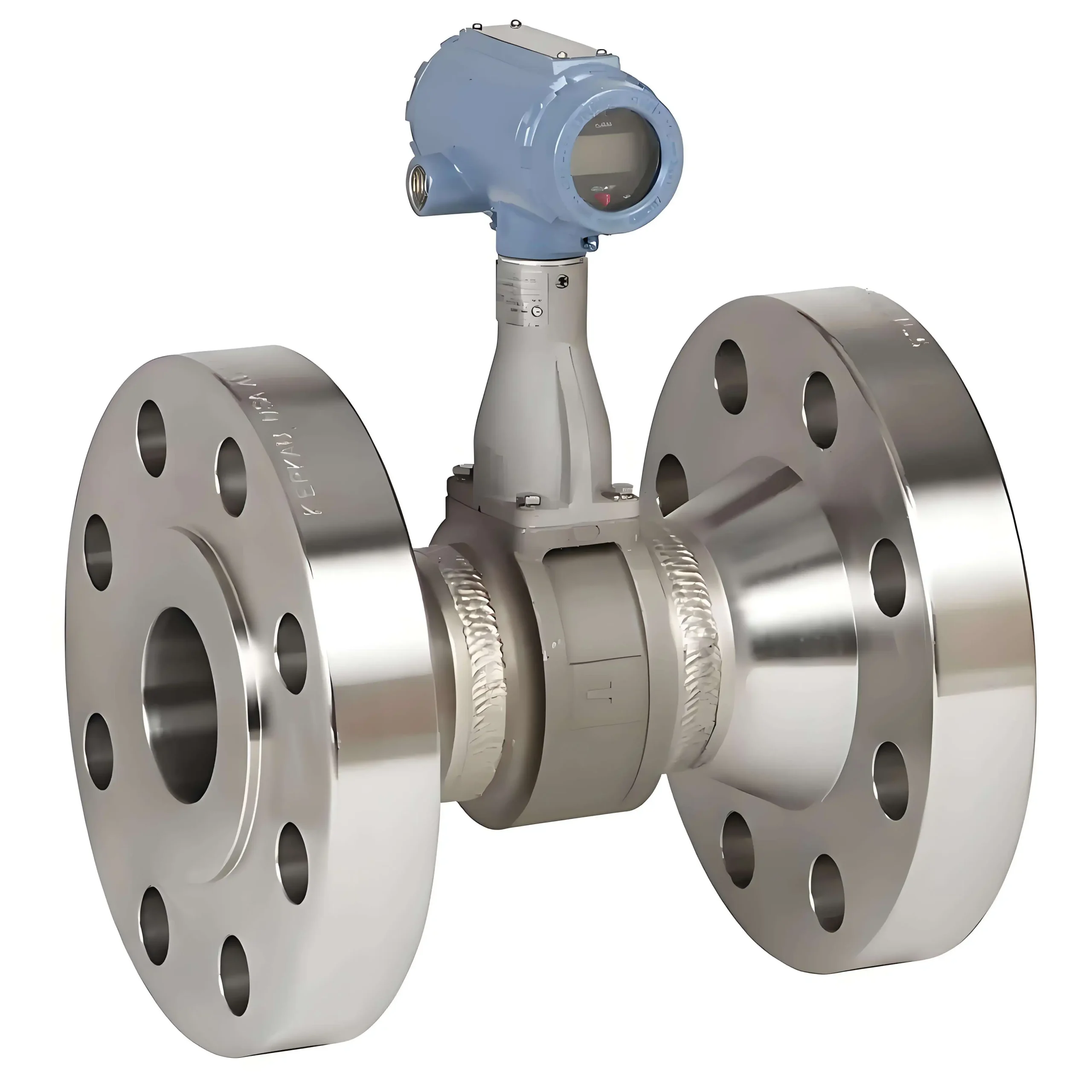

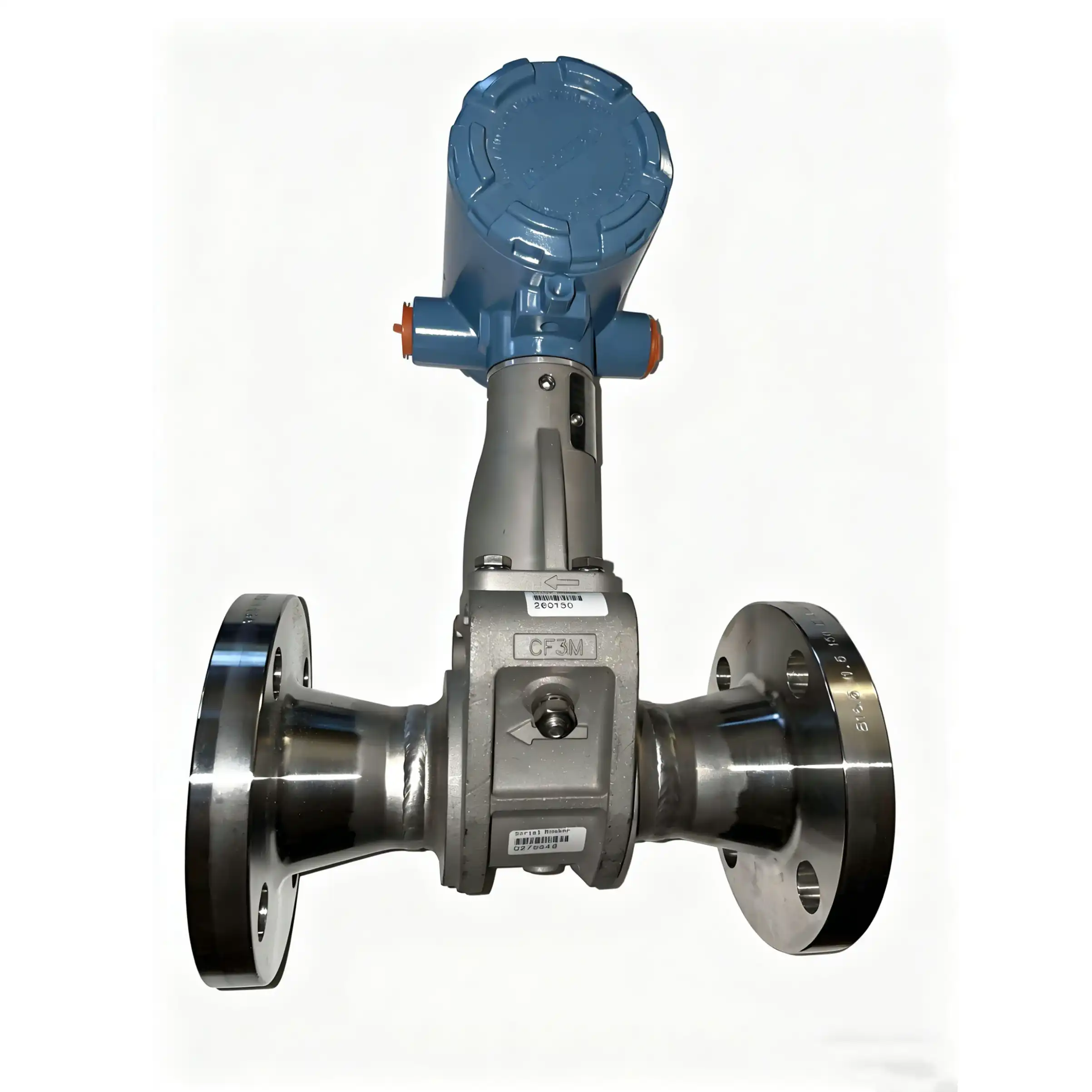

The Rosemount 8800DF Flanged Vortex Flow Meter is designed for reliable flow measurement in liquid, gas, and steam applications. Its gasket-free, non-clog meter body helps reduce potential leak points and supports stable long-term operation in industrial process environments.
Key Features
- Flanged vortex flow meter for liquid, gas, and steam service
- Gasket-free, non-clog meter body
- Isolated sensor design
- 4-20 mA with HART 5 or 7
- Turndown up to 38:1
- Liquid accuracy up to ±0.65% of volumetric rate
- Gas and steam accuracy up to ±1% of volumetric rate
- Multiple flange ratings and material options available across the series
Applications
This model is suitable for general industrial flow measurement as well as more demanding process applications involving steam, gas, and liquids. It is a practical choice for users who need stable operation, reduced maintenance, and broad process compatibility.
Specifications Overview
- Product Type: Flanged Vortex Flow Meter
- Brand: Rosemount
- Series: 8800
- Model Family: 8800DF
- Measured Media: Liquid, Gas, Steam
- Output: 4-20 mA with HART 5 or 7
- Optional Output: 4-20 mA with HART and scalable pulse output
- Turndown: 38:1
- Liquid Accuracy: ±0.65% of volumetric rate
- Gas / Steam Accuracy: ±1% of volumetric rate
- Wetted Material Options: 316 / 316L stainless steel and CF3M, with other material options available in the series
- Flange Options: ANSI Class 150 to 1500; DIN PN 10 to PN 160; JIS 10K to 40K
- Operating Temperature: -330°F to 800°F (-200°C to 427°C)
- Line Size Range: 1/2″ to 12″ (15 to 300 mm)
